RUGGED EDGE COMPUTING FOR SURVEILLANCE
RUGGED EDGE COMPUTING FOR AI VIDEO SURVEILLANCE
Ruggedised, fanless and hybrid-cooled edge computing platforms for surveillance systems requiring local video processing, multi-camera connectivity and AI inference at the point of capture. Designed for demanding indoor and outdoor deployments, 2CRSi Edge platforms support distributed surveillance, video analytics and real-time monitoring where network bandwidth, latency and environmental conditions are critical considerations.
AI - ENABLED SURVEILLANCE
AI VIDEO ANALYTICS AT THE EDGE
Edge AI moves video inference closer to the camera, enabling events, objects and activities to be analysed locally. This reduces dependence on centralised processing, limits data transfer and supports lower-latency video analytics.
ANALYTICS
Real-time video analytics
Analyse objects, events and activities locally for applications including incident detection, perimeter monitoring, object tracking and operational safety.
ANOMALY
Behavioural & anomaly detection
Identify activity that differs from defined patterns, rules or expected behaviour for review and response.
SMART CITY
Smart city & traffic analytics
Analyse vehicle, pedestrian and traffic activity locally, including flow, congestion and defined traffic conditions.
DISTRIBUTED
Distributed video processing
Process video locally and transmit relevant events or selected footage instead of continuously transferring high-resolution video.
THE REQUIREMENTS
WHERE SURVEILLANCE SYSTEMS HAVE TO OPERATE
Surveillance computing must be specified for both the workload and the installation environment from controlled indoor spaces to exposed, remote and distributed sites.
ENVIRONMENT
Humidity and salt exposure
Ports, coastal sites and exposed infrastructure can subject equipment to sustained humidity and salt-laden air.
THERMAL
Heat and humidity
Elevated ambient temperatures combined with humidity increase the demands on thermal management and system reliability.
DEPLOYMENT
No climate control
Street-level, perimeter and remote installations may operate without controlled environmental conditions or convenient physical access.
PROTECTION
Additional environmental protection
Some installations require secondary enclosures or additional protection to meet the environmental requirements of the deployment.
DATA
High-volume video streams
Multiple high-resolution camera streams generate substantial demands on network bandwidth, storage and local processing.
PROCESSING
Latency-sensitive workloads
Surveillance and monitoring applications may require rapid analysis close to the point of capture.
OPERATIONS
Multi-display control rooms
Control rooms may need to process and display multiple camera feeds across high-resolution displays with low acoustic output.
POWER
Power-constrained installations
Remote, roadside and distributed sites may have limited available power, requiring efficient edge computing platforms.
PLATFORMS
Edge Computers for AI Video Surveillance, from Camera to Control Room
JUNCTION & ROADSIDE

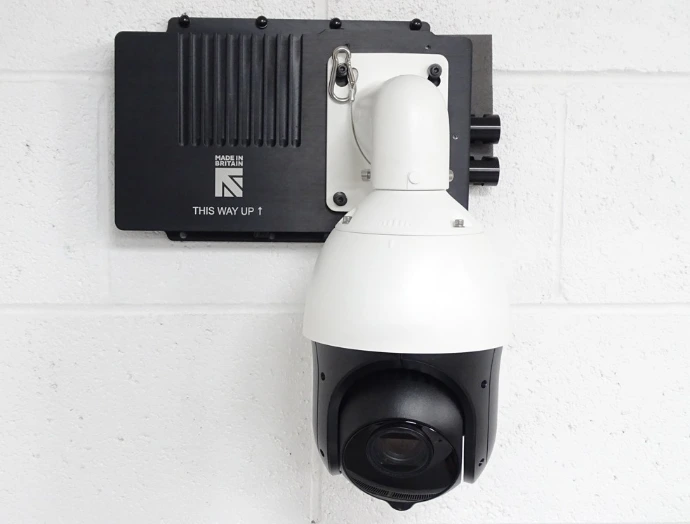

Vision Guard
· VG-15MV-66
Compute, networking and PoE camera power in one sealed enclosure, mounted directly with fixed and PTZ cameras on lamp posts, roadside infrastructure and utility poles.
• CPU: Intel Core Ultra 5 225H · up to 96GB DDR5
• Cameras: Up to 3 IP cameras · 2 × IP66 PoE ports
• AI: Optional Axelera Metis M.2 · up to 214 TOPS
• Network: 1 × 2.5GbE LAN
• Environment: IP66 · fanless · −20°C to 70°C
OUTDOOR AI INFERENCE

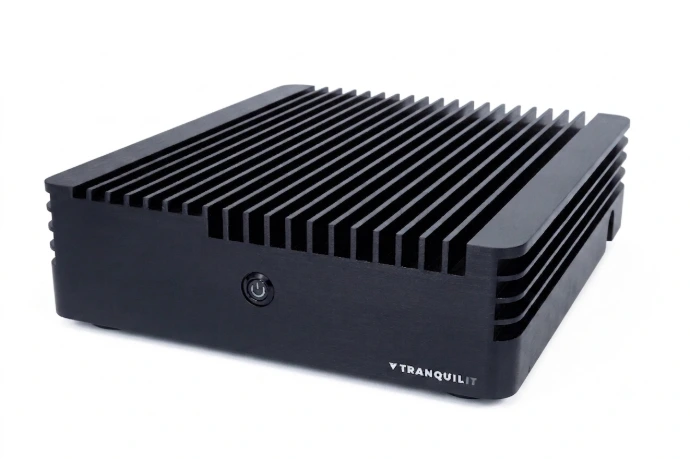

Outdoor Edge AI System
· FM-METIS-66 · FM-METIS-66-12V
Security, roadside and infrastructure installations without an external cabinet.
• AI: Axelera Metis AIPU · 214 TOPS
• CPU: Rockchip RK3588 · 8-core
• Graphics: ARM Mali-G610 GPU
• Network: Dual LAN
• Power: 110–220 V mains or 12 V DC variant
BUSES & FLEET VEHICLES

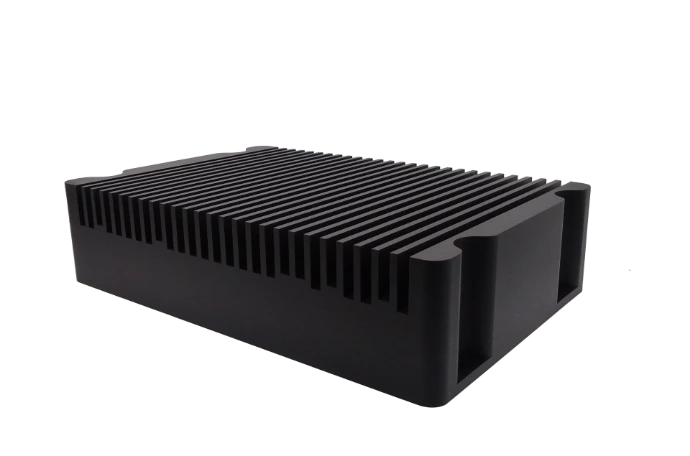

Mobile Edge System
· FM-15MIV-51
On-board cameras, passenger information and tracking for buses and enforcement fleets
• Storage: Up to 8 TB SATA SSD
• Connectivity: Dual GbE · Wi-Fi 6E · SIM slot
• Power: Vehicle DC · intelligent ignition control
SURVEILLANCE & AI VIDEO ANALYTICS

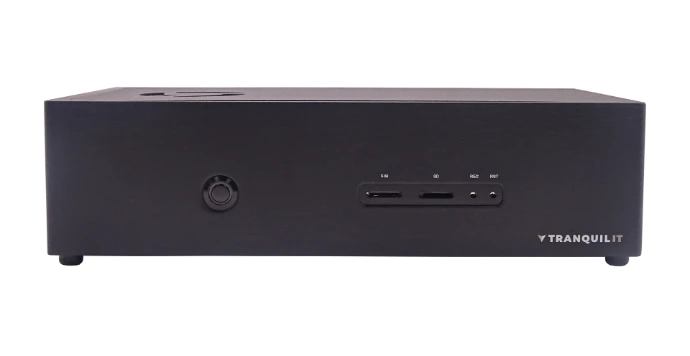

Hybrid Cooled Mini - Jetson Orin 64GB
HCM-JON-64-41
Deep-learning video analytics, multi-model inference, and dense multi-camera streams requiring higher AI throughput.
• Processor: 12-core Arm Cortex‑A78AE v8.2 · 3MB L2 + 6MB L3
• GPU: 2048-core NVIDIA Ampere GPU · 64 Tensor Cores
• Memory: Up to 64GB LPDDR5
• Network: 1 × 1GbE + 1 × 10GbE
• Environment: IP41 · hybrid cooling · −25°C to 80°C
CONTROL CENTRE

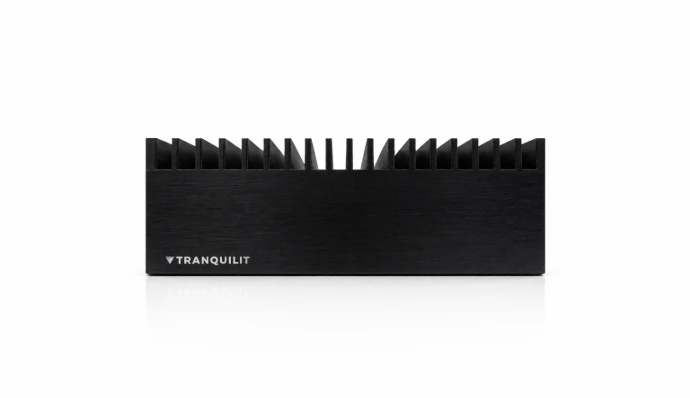

Fanless Mini Edge Server - AMD
FSM-EP4S-50
operations centre.
• Processor: AMD Epyc 4464P
• Memory: Up to 192GB
• Network: Up to Dual 10GbE
• Operating Range: -10°C to 50°C
• Dimensions: 67 × 221 × 246 mm
INTERCHANGE & DISTRICT HUB

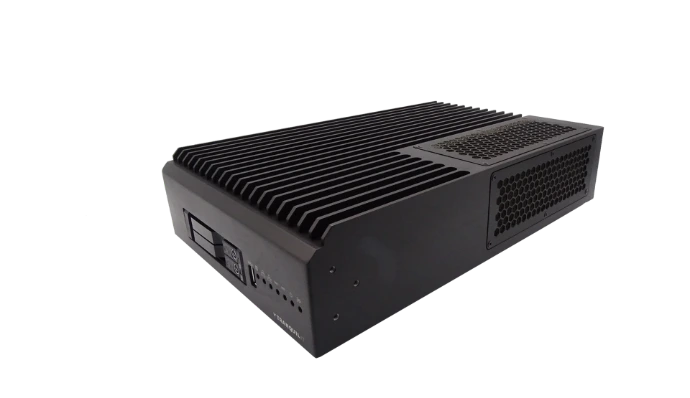

Waterproof Server - AMD
FS-EP3S-66
without building a server room.
• Processor: AMD EPYC 3000
• Memory: Up to 128GB
• Network: 2 × 10GbE + management
• Operating Range: -10°C to 50°C
• Resilience: IP66
APPLICATIONS
Edge computing for distributed surveillance
COASTAL & WATERFRONT
Outdoor surveillance in exposed environments
Local video processing for coastal, waterfront and port installations exposed to humidity and salt-laden air.
PORT & TERMINAL SECURITY
Port and terminal surveillance
Edge processing for perimeter monitoring, access points, gates and operational security across distributed sites.
STREET & PERIMETER

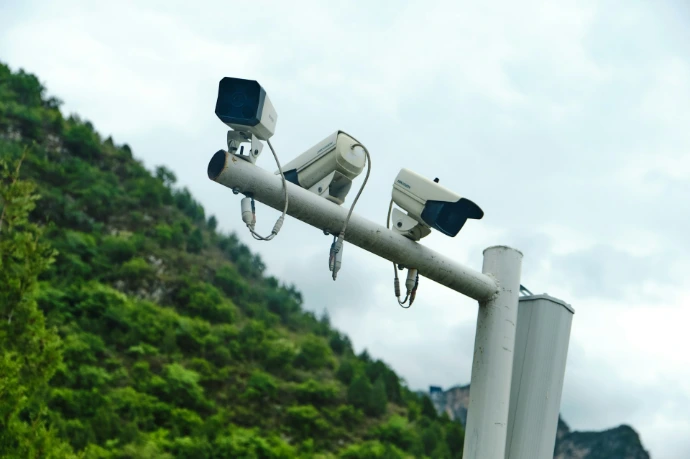

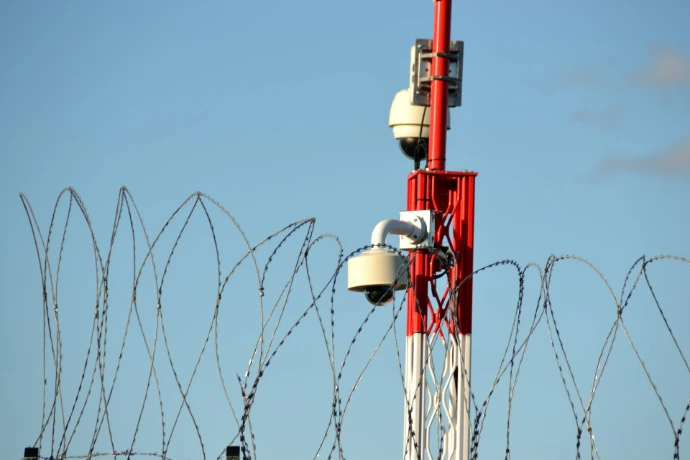

Roadside & perimeter surveillance
Local video analytics for street-level, perimeter and boundary monitoring where connectivity and environmental conditions can vary.
SMART CITY & TRAFFIC
Smart city & traffic monitoring
Edge AI processing for vehicle, pedestrian and traffic analysis at roadside and distributed urban infrastructure.
CONTROL ROOMS & MONITORING
Multi-display surveillance systems
Fanless edge computing for control rooms, monitoring walls and multi-display video environments requiring low acoustic output.
REMOTE & POWER-CONSTRAINED SITES
Remote surveillance infrastructure
Local processing for distributed sites where network bandwidth, available power or physical access is limited.
ISO 9001 & ISO 14001
Cyber Essentials and full build traceability
Silent operation
Fanless, passive cooling for control rooms and monitoring walls where fan noise is unwanted.
Made in Britain
Designed and manufactured in the UK
3 Year warranty
Why 2CRSi Edge?
Standardising the platform across sites simplifies configuration, deployment, spare-part management and technical support as a camera estate grows. We have designed and built in Britain since 2003.
TELL US WHAT THE CAMERAS NEED TO DO.
Camera count, resolution, frame rate, AI workload, required latency, environmental conditions, power, connectivity and display requirements. For distributed estates we can help define a repeatable architecture from single cameras to multi-site deployments.
